autocars cuenta con el scanner de última generación suministrado directamente por la fábrica en Japón para todos los modelos marca Toyota y Lexus.

Esta herramienta de tecnología de punta denominada el INTELLIGENT TESTER II, marca oficial de Toyota, nos permite diagnosticar:

• Fallas.
• Solucionar problemas.
• Reprogramar todo lo relacionado con su vehículo, como:
  • Llaves.
  • Confort.
  • Personalizar su automóvil (algunos casos).
  • Configurar parámetros.
• Ajustar problemas de sincronización, frenos, air bag, etc.
• Realizar pruebas activas de cada una de las funciones y computadoras de abordo (i.e. medir voltajes, etc).

Esto nos ayudará a solucionar problemas en su automóvil con mayor rapidez y eficacia, ahorrando tiempo en la reparación.

VER MAS INFORMACION E IMAGENES
DEL SCANNER TOYOTA INTELLIGENT TESTER II (Inglés)

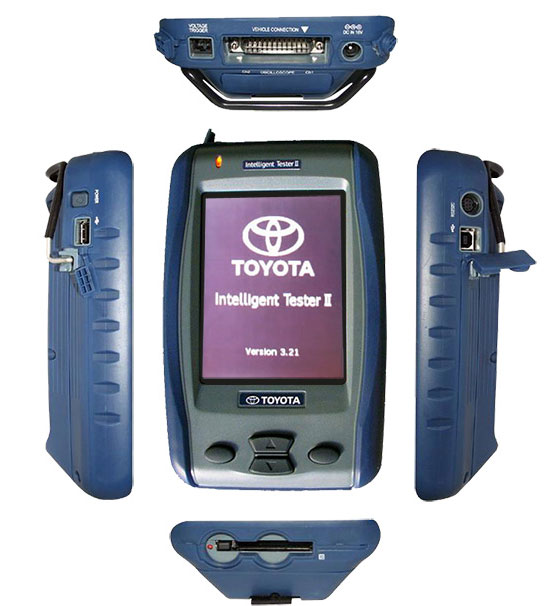

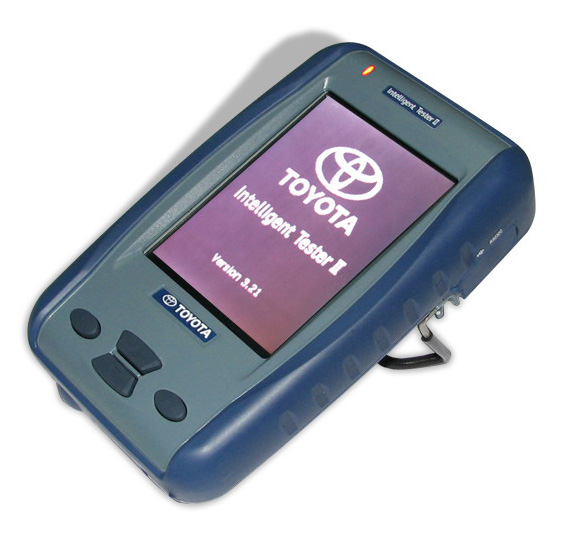

Toyota Intelligent Tester II is designed to fully utilize the enhanced vehicle On-Board Diagnosis function such as improvement of data refresh rate (CAN protocol),enhancement of Freeze Frame Data and Active Test function and so on.

As an aid in diagnosing electrical and electronic control system, it is capable of monitoring and testing Electronic Control Units (ECUs) for powertrain, chassis and body systems and their associated sensorsand actuators.

Easy and fast USB connection will realize tight integration with Personal Computer (PC) based applications and systems. The Intelligent Tester II has an ability of future extension via generic memory card slot and change of the optional unit. The wireless communication with PCs will be possible by using wireless card in the future.

Range
All type of Toyota (made after 2000) and Lexus included read code, clear code , data flow, action testing and guard against theft initialization function. And it also supports OBD-II.

Functions And Features
Detect Vehicle Connected Automatically.
Display Vehicle Current Data Parameters (Data List).
Display Diagnosis Trouble Codes (DTC).
Activate Relays, Solenoids, etc. (Active Test).
Display Voltage Signals from Voltage Meter Probe.
Store All Data Parameters Before and/or After Problem Occurs (Snapshot).
Reprogram ECUs.

Functions and Features of Oscilloscope Set
All Functions on Standard Set.
Display Voltage Signals from the Oscilloscope Probe for Analysis (Oscilloscope).
2ch inputs.
Input Impedance 2Mohm.
1Hz-500KHZ for Frequency range.
Voltage Relative to Vehicle Ground –90 to +90v.
Measurement Accuracy –5% to +5%.

Scan System
Engine.
A/T.
ABS.
TRC.
ESP.
SRS.
Anti-theft, Centrol Door Lock.
ICM, Cruise, Suspension, A/C.
EPS.

Auto Oscillograph
Test sensor and Actuator.
Display Voltage Signals from the Oscilloscope Probe for Analysis (Oscilloscope).
Single-Channel Oscillograph.
Dual-Channel Oscillograph.
Automatic Oscillograph-Automatic setting time base, Battery.
Memory and back display.

Intelligent Tester II Main Function
Read out trouble code, Erase trouble code.
Data Stream.
Draw data stream curve.
System setting.
Control unit programming.
Self-test inter status of Inspection Instrument.
Memory and Back display.
Bidirectional Control function—Drive actuation components simultaneity.

Digital Multimeter
Test Appliance system.
Pressure, Frequency, Work ratio.

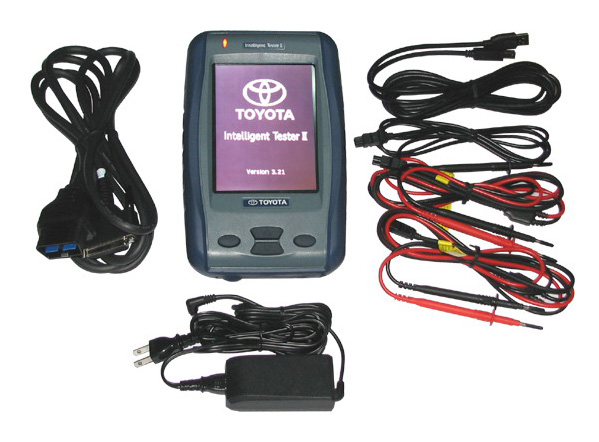

Intelligent Tester II Accessories
Main unit.
Test lead.
Oscillograph test cable.
Power supplying.
